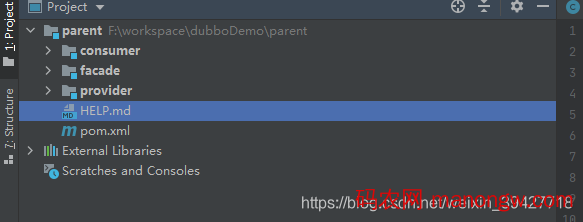

1.新建项目
利用idea创建一个父项目，三个子项目，其中一个项目为生产者，一个项目为消费者，一个为接口等公共服务项目，生产者和消费者需要有web依赖，可以作为tomcat容器启动。
2.项目依赖
<dependencies>
<dependency>
<groupId>org.apache.dubbo</groupId>
<artifactId>dubbo–spring–boot–starter</artifactId>
<version>2.7.6</version>
</dependency>
<!— zk的依赖 —>
<dependency>
<groupId>org.apache.dubbo</groupId>
<artifactId>dubbo–dependencies–zookeeper</artifactId>
<version>2.7.6</version>
<type>pom</type>
<exclusions>
<exclusion>
<groupId>org.slf4j</groupId>
<artifactId>slf4j–log4j12</artifactId>
</exclusion>
</exclusions>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring–boot–starter–aop</artifactId>
<scope>test</scope>
</dependency>
<dependency>
<groupId>org.aspectj</groupId>
<artifactId>aspectjweaver</artifactId>
</dependency>

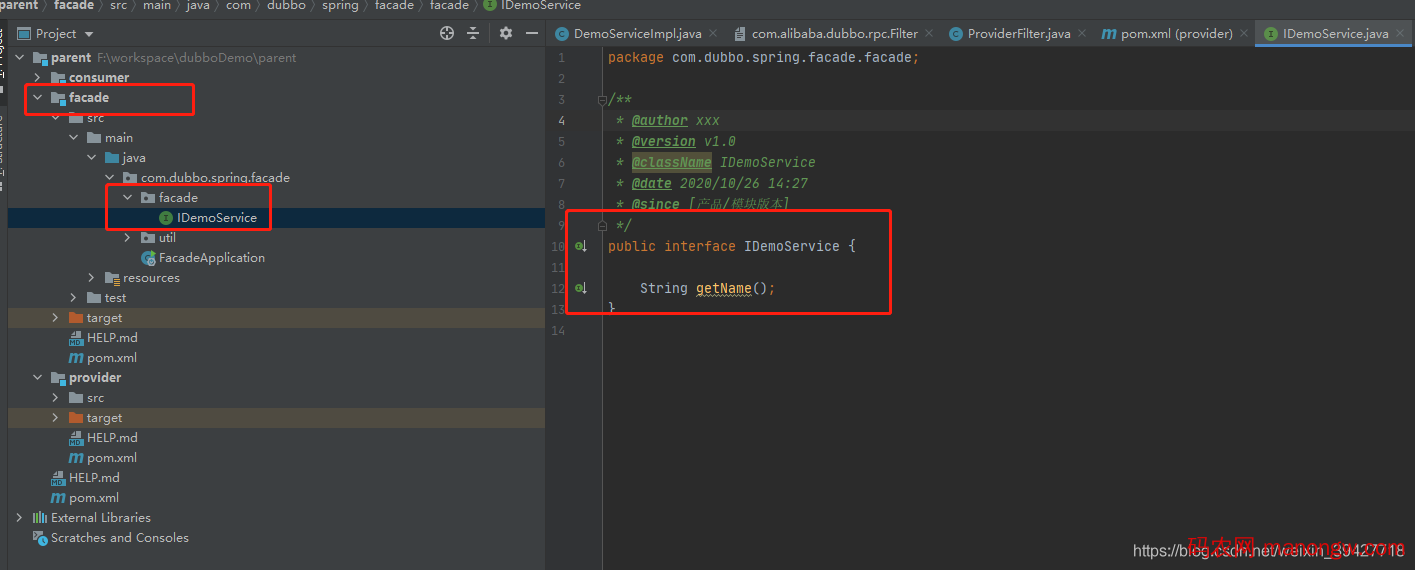

3.在facade项目中新建接口
4.编写生产者
4.1 增加dubbo配置
server.port=8081
dubbo.registry.address=zookeeper://localhost:2181
dubbo.protocol.name=dubbo
dubbo.protocol.port=20880
dubbo.registry.timeout=30000
dubbo.application.name=dubbo–provider–ll
4.2 编写生产者dubbo filter
public class ProviderFilter implements Filter {
@Override
public Result invoke(Invoker<?> invoker, Invocation invocation) throws RpcException {
Object threadName= invocation.getAttachment(“ThreadName”);
if(null!=threadName){
Thread thread = Thread.currentThread();
thread.setName(threadName.toString());
}
return invoker.invoke(invocation);
}
}
注意：此处Filter 是dubbo的filter，不是servlet的filter
这里代码的目的是将从消费端传来的线程名称设置为线程名称
在resources目录下新建META-INF/dubbo/com.alibaba.dubbo.rpc.Filter 文件
即新增目录META-INF/dubbo和文件 com.alibaba.dubbo.rpc.Filter在文件中增加，等号后面为实现dubbo filter的实现类路径
providerFilter=com.dubbo.spring.provider.filter.ProviderFilter4.3编写dubbo生产者实现类
@Service(filter = {“providerFilter”})
public class DemoServiceImpl implements IDemoService {
public Logger LOGGER= LoggerFactory.getLogger(DemoServiceImpl.class);
@Override
public String getName() {
LOGGER.info(“provider ThreadName : “+Thread.currentThread().getName());
return “dubbo-test”;
}
}
5.编写消费者
5.1编写消费者filter
public class DubboFilter implements Filter {
@Override
public Result invoke(Invoker<?> invoker, Invocation invocation) throws RpcException {
String name = Thread.currentThread().getName();
invocation.setAttachment(“ThreadName”,name);
return invoker.invoke(invocation);
}
}
此处是将线程名称放入到attachment中，attachment底层是hashmap，后续使用dubbo请求生产者时，会把attachment给到生产者，故在生产中中可以通过key ThreadName来获取消费者端的线程名称
在resources目录下新建META-INF/dubbo/com.alibaba.dubbo.rpc.Filter 文件 即新增目录META-INF/dubbo和文件 com.alibaba.dubbo.rpc.Filter在文件中增加，等号后面为实现dubbo filter的实现类路径
consumerFilter=com.dubbo.spring.consumer.filter.DubboFilter5.2 编写response对象
public class Response implements Serializable {
private static final long serialVersionUID = –3186818832535757509L;
private String code;
private String message;
private Object result;
private String index;
public String getCode() {
return code;
}
public void setCode(String code) {
this.code = code;
}
public String getMessage() {
return message;
}
public void setMessage(String message) {
this.message = message;
}
public Object getResult() {
return result;
}
public void setResult(Object result) {
this.result = result;
}
public String getIndex() {
return index;
}
public void setIndex(String index) {
this.index = index;
}
}
此response为web端返回到页面统一对象
5.3 编写aop切面
@Aspect
@Component
public class AopContext {
@Before(“execution(* com.dubbo.spring..*.*(..))”)
public void before(){
Thread thread = Thread.currentThread();
thread.setName(UUIDUtil.getUUID());
}
@Around(“execution(* com.dubbo.spring..*.*(..))”)
public Object around(ProceedingJoinPoint pjp){
Response response=new Response();
try {
Object proceed = pjp.proceed();
if(proceed instanceof Response){
response=(Response) proceed;
response.setIndex(Thread.currentThread().getName());
}
} catch (Throwable throwable) {
throwable.printStackTrace();
}
return response;
}
}
1.before是在请求进入时给线程设置名称，为随机生成的uuid
2.around是环绕通知，在执行完之后，在返回的结果中将线程名称设置进去，便于以后异常追踪5.4 编写web
@RestController
public class WebController {
private Logger LOGGER= LoggerFactory.getLogger(WebController.class);
@Reference(filter = {“consumerFilter”})
private IDemoService iDemoService;
@GetMapping(“/getName”)
public Response getName(){
LOGGER.info(“consumer ThreadName : “+Thread.currentThread().getName());
String name = iDemoService.getName();
Response response=new Response();
response.setResult(name);
response.setCode(“1001”);
response.setMessage(“success”);
return response;
}
}

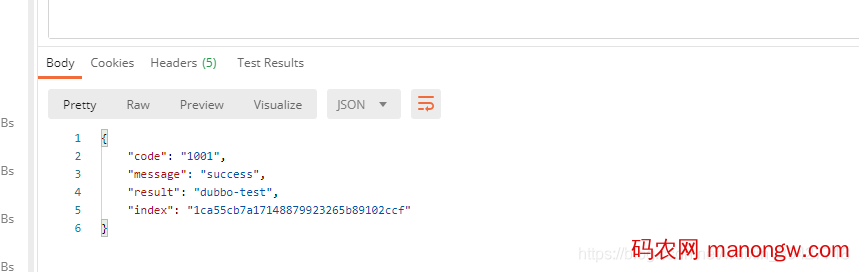

请求结果
此处为postman响应的，index 为1ca55cb7a17148879923265b89102ccf
生产者线程名称：
消费者线程名称：
可以看到从web页面到生产者，消费者，都有一个全局唯一id进行贯穿，如果在web页面提示有异常时，可以通过这个uuid进行日志追踪
到此这篇关于springboot整合dubbo设置全局唯一ID进行日志追踪的文章就介绍到这了。
